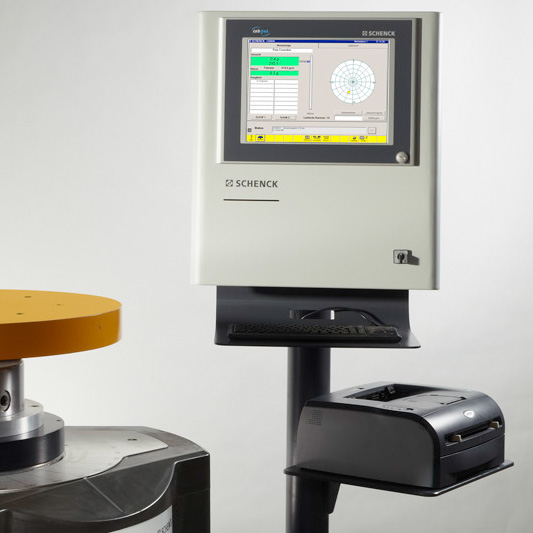

Efficient measuring unit CAB 920; operation by Touch Screen
Special characteristics
Permanent calibration due to new measuring principle, i.e. no later adjustments of measuring mimic
Low operating- and maintenance cost
Low maintenance
The machine requires no foundation, simply set it up, fasten three bolts, connect power, and the machine is ready to balance
Little space required

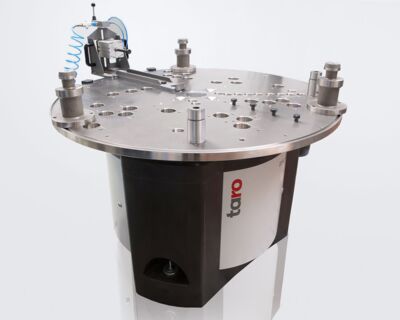

Various special functions, such as automation, indexing function or integration of lifting table
Design
Range of application

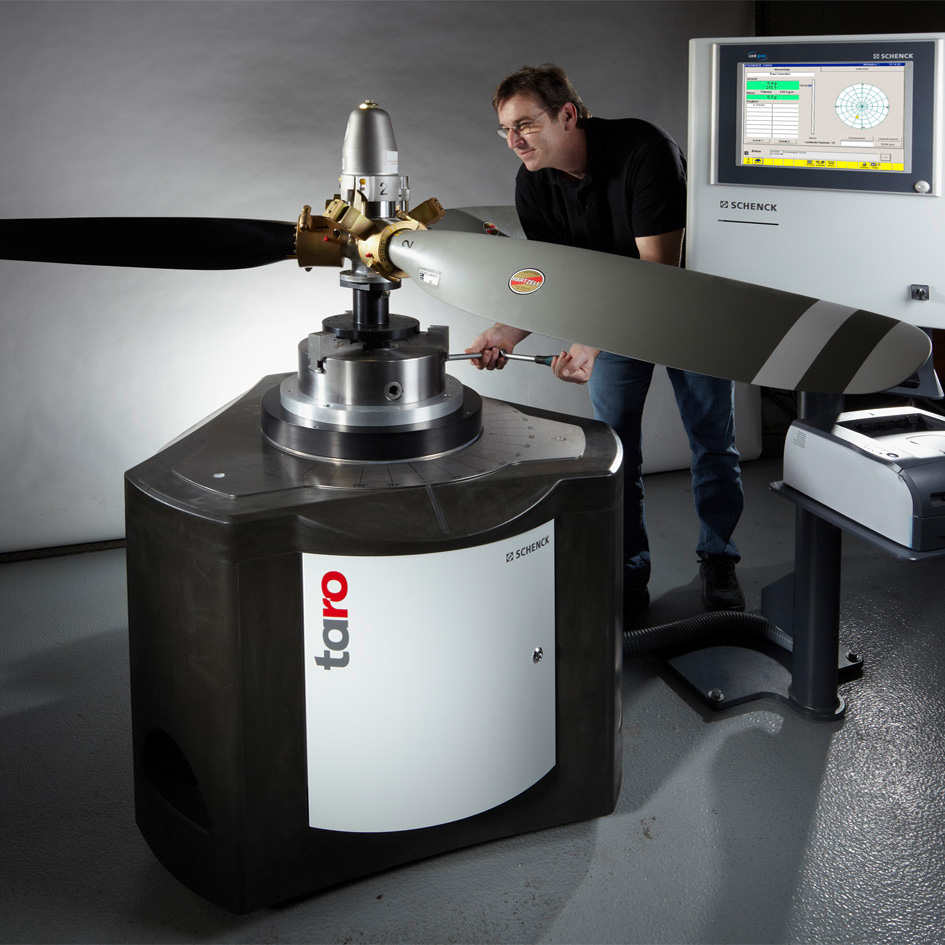

Measuring of static unbalance of disc-shaped rotors, as e.g. grinding wheels, propellers, brake discs, railway wheels, pump impellers.
Calculation of the unbalance correction; applicable for adding or removing masses. Applicable for pure unbalance measurement, for tasks with unbalance correction in production, intake control and for final balancing. Moreover the rotor weight is determined automatically.
Technical data
Technical Data: Taro
Machine type
Taro 600
Taro 1600
Taro 3600
Capacitiy of measuring unit
kg
< 600
< 1.600
< 3.600
Measurable unbalance, max.
kgm
20
50
100
Measurement uncertainty
gmm
600
800
1200
Measuring time
sek
3 ... 7
5 ... 12
5 ... 12
Normal voltage
100 ... 230 V / 50 ... 60 Hz

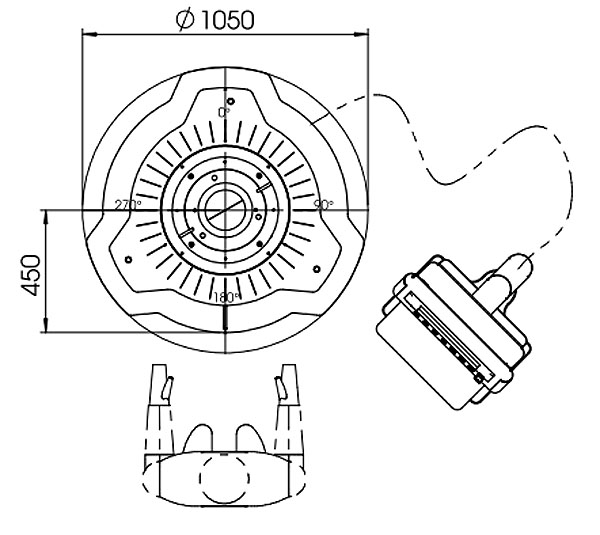

Dimensions
H, W, D
830 x 1.050 x 1.050
