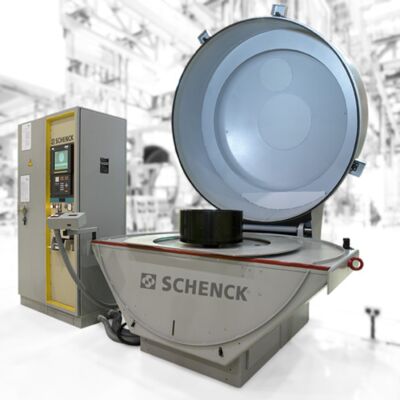

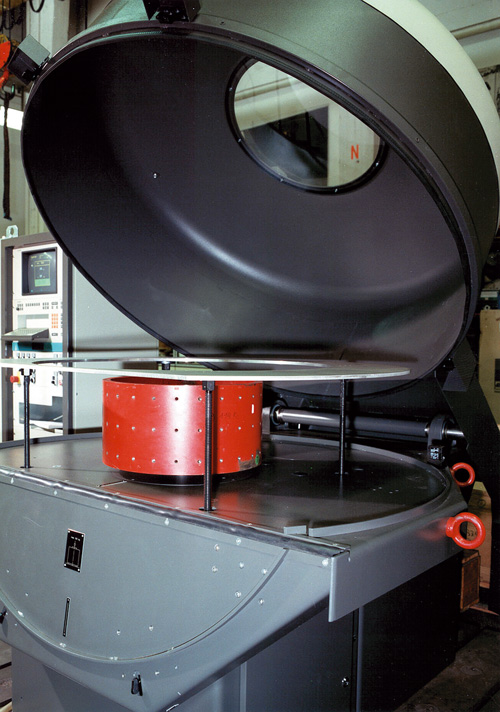

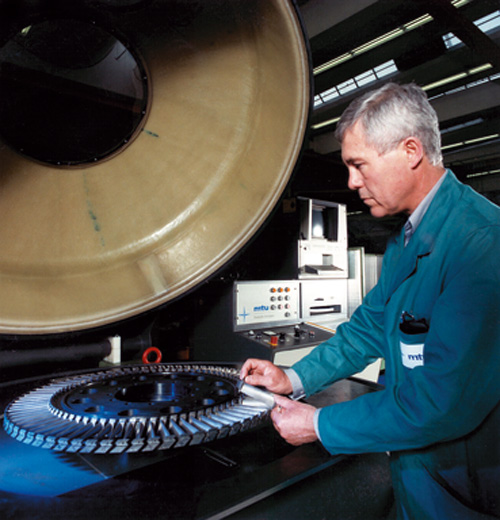

Technical data at a glance | VE1L | VE2L | VE3L | VE4L | VE40L | VE5L | V1L | V2L | V3L | V4L | V40L | |
Measuring unit | CAB 925 | CAB 925 | CAB 925 | CAB 925 | CAB 925 | CAB 925 | CAB 925 | CAB 925 | CAB 925 | CAB 925 | CAB 925 | |
Protective shroud C600 acc. to ISO 7475 | • | • | • | • | • | • | • | • | • | • | • | |
Balancing in one plane | • | • | • | • | • | • | ||||||
Balancing in two planes | • | • | • | • | • | |||||||
Rotor description | ||||||||||||
Weight | [kg] | 0.3 - 10 | 0.5 - 25 | 2 - 60 | 5 - 150 | 10 - 300 | 15 - 500 | 0.3 - 10 | 0.5 - 25 | 2 - 60 | 5 - 150 | 10 - 300 |
Diameter, max. 1) | [mm; inch] | 406; 16 | 610; 24 | 990; 39 | 1448; 57 | 1178; 70 | 2082; 82 | 406; 16 | 610; 24 | 990; 39 | 1448; 57 | 1178; 70 |
Height 1) | [mm; inch] | 254; 10 | 254; 10 | 254; 10 | 508; 20 | 508; 20 | 610; 24 | 254; 10 | 254; 10 | 254; 10 | 508; 20 | 508; 20 |
Machine | ||||||||||||

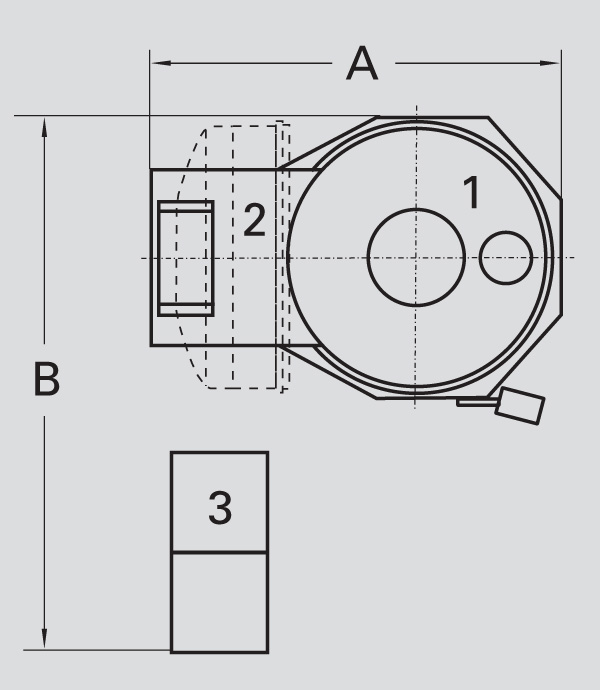

Width A 5) | [mm] | 2300 | 2300 | 2600 | 3400 | 4700 | 4900 | 2300 | 2300 | 2600 | 3400 | 4700 |
Depth B 5) | [mm] | 2800 | 2800 | 3100 | 5000 | 5400 | 5900 | 2800 | 2800 | 3100 | 5000 | 5400 |
Height C 5) | [mm] | 1700 | 1800 | 2100 | 2800 | 3200 | 3600 | 1700 | 1800 | 2100 | 2800 | 3200 |
Balancing speed, max. | [min -1] | 2000 | 1500 | 1200 | 950 2) | 950 2) | 950 | 2000 | 1500 | 1200 | 950 2) | 950 2) |
Balancing accuracy 3) | [mikroinch] | 30 | 30 | 30 | 50 | 50 | 50 | 30 | 30 | 30 | 50 | 50 |
Test rotor 4) | [lbs] | 8 | 25 | 25 | 80 | 250 | 250 | 8 | 25 | 25 | 80 | 250 |
Air pressure | [kPa] | - | - | - | 600 | 600 | 600 | - | - | - | 600 | 600 |
Drive power | [kW] | 1.1 | 1.1 | 2.2 | 7.5 | 7.5 | 22 | 1.1 | 1.1 | 2.2 | 7.5 | 7.5 |
Order No. | R0470100.01 | R0470200.01 | R0470300.01 | R0470400.01 | R0470500.01 | R0470600.01 | R0470700.01 | R0470800.01 | R0470900.01 | R0471000.01 | R0471100.01 | |
Order No. | - | - | - | R0470401.01 | R0470501.01 | R0470601.01 | - | - | - | R0471001.01 | R0471101.01 | |
Drive locking equipment | Order No. | R0470102.01 | R0470202.01 | R0470302.01 | R0470402.01 | R0470502.01 | R0470602.01 | R0470702.01 | R0470802.01 | R0470902.01 | R0471002.01 | R0471102.01 |
SAE test rotor ARP4162 | Order No. | R0470103.01 | R0470203.01 | R0470303.01 | R0470403.01 | R0470503.01 | R0470603.01 | R0470703.01 | R0470803.01 | R0470903.01 | R0471003.01 | R0471103.01 |
11 kW drive | Order No. | - | - | - | - | R0470504.01 | - | - | - | - | - | R0471104.01 |
Report printout equipment | Order No. | R0470105.01 | R0470205.01 | R0470305.01 | R0470405.01 | R0470505.01 | R0470605.01 | R0470705.01 | R0470805.01 | R0470905.01 | R0471005.01 | R0471105.01 |
2) Alternatively also 1100 min-1 | ||||||||||||
3) Conformance to SAE ARP 4050 / 5323 with corresponding SAE test rotor | ||||||||||||
4) 1 lb = 0.456 kg | ||||||||||||
5) Tasks with an open shroud. Non-binding, dependent on the respective equipment delivery |
